Clapham Station.

Main switchboard — MSB-CMF

← All projects

The MSB-CMF main switchboard suite: mains and generator incoming with manual transfer, metering and surge diverter section, and MSSB and distribution board columns feeding the wider facility.

Main switchboard Manual transfer & generator incoming MSSB & DB distribution

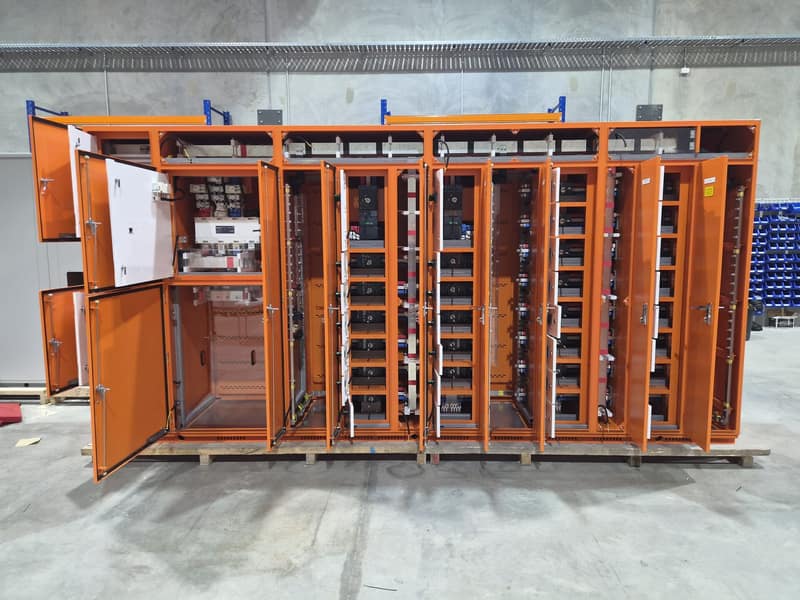

Clapham Station — full board run with escutcheons open

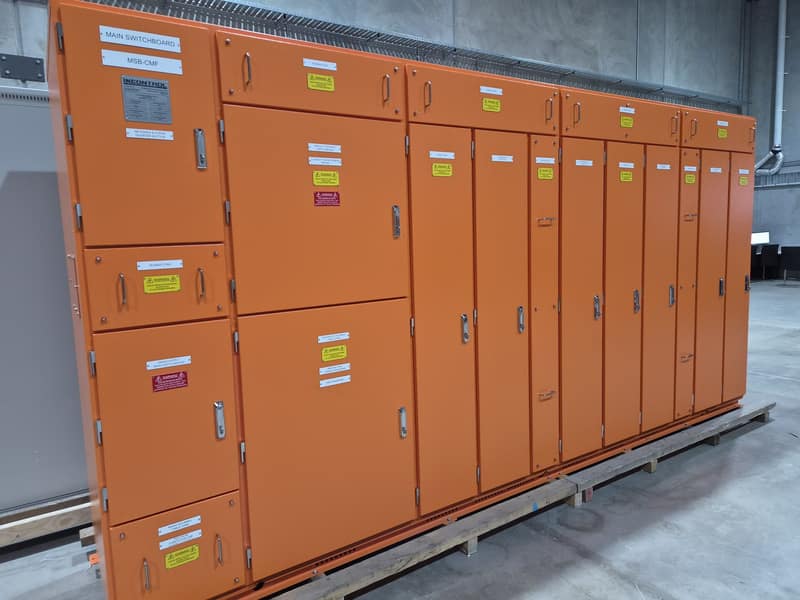

Clapham Station — MSB-CMF sections and labelled zones

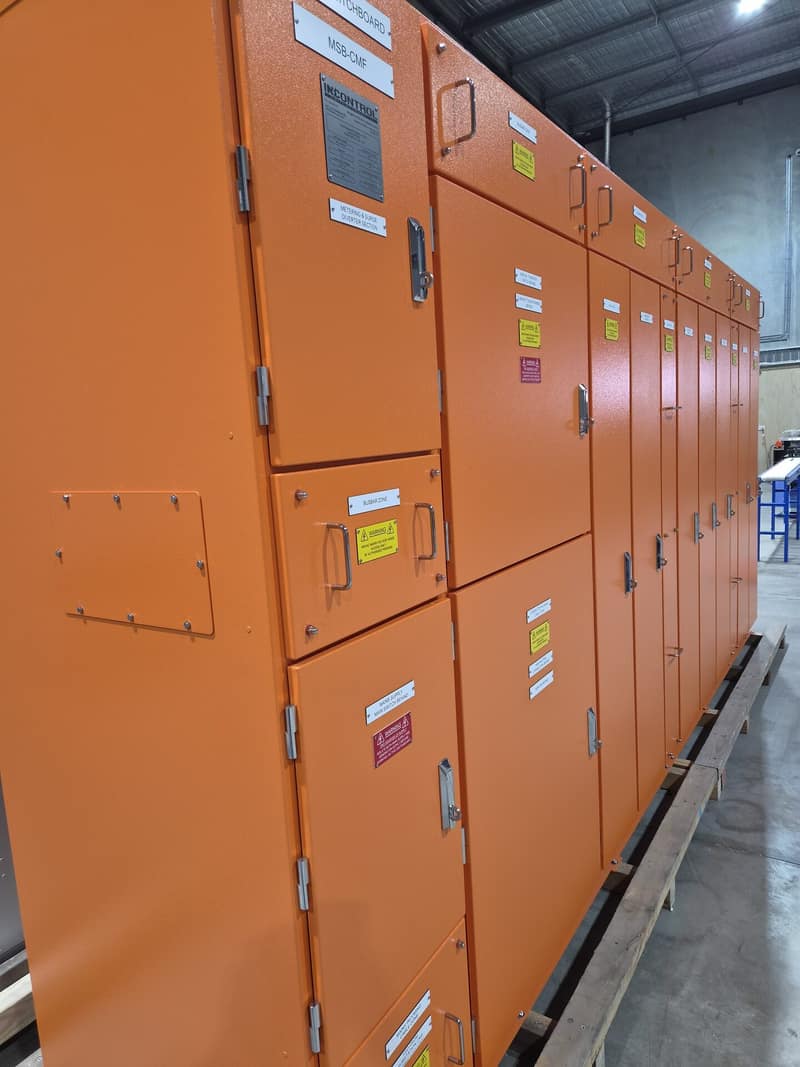

Clapham Station — metering and surge diverter section

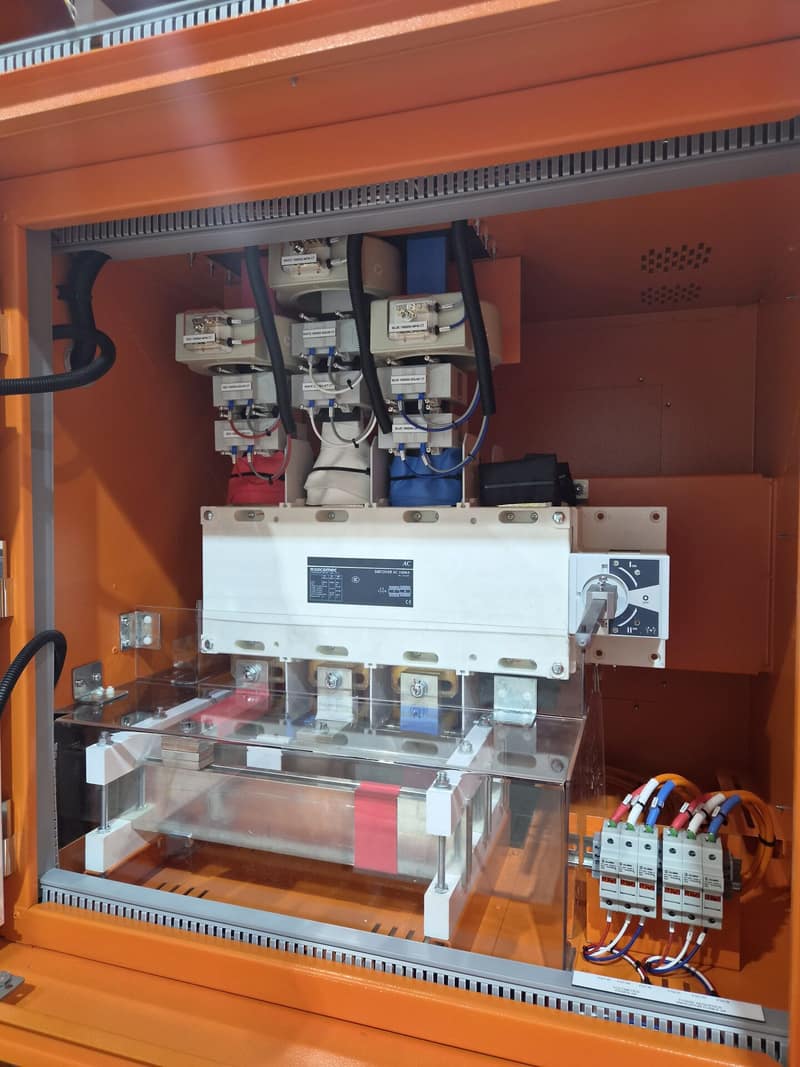

Clapham Station — 1600A changeover switch and metering CTs

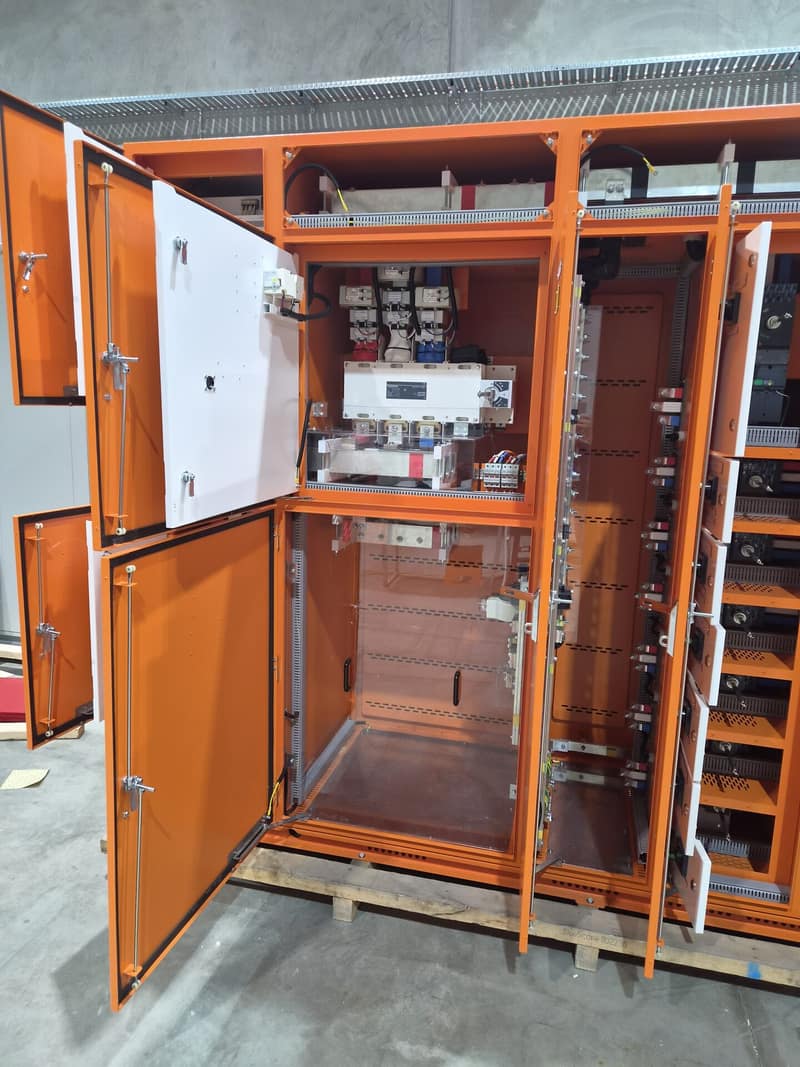

Clapham Station — manual transfer section

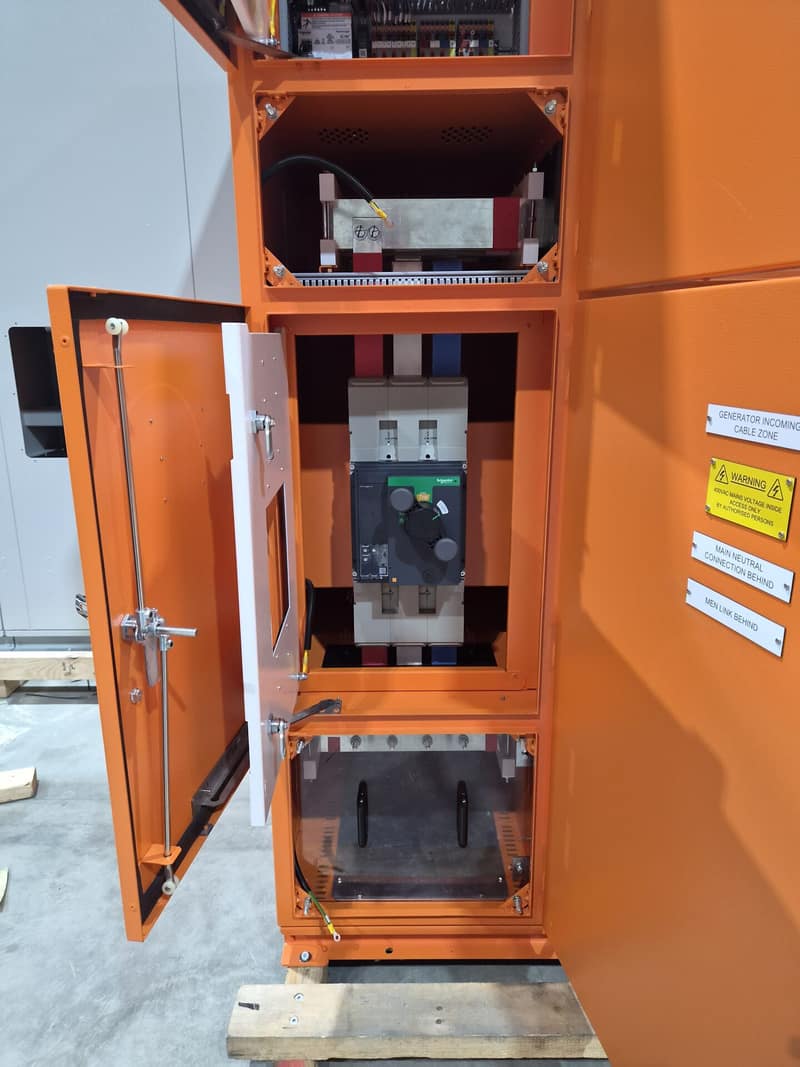

Clapham Station — generator incoming and main neutral zone

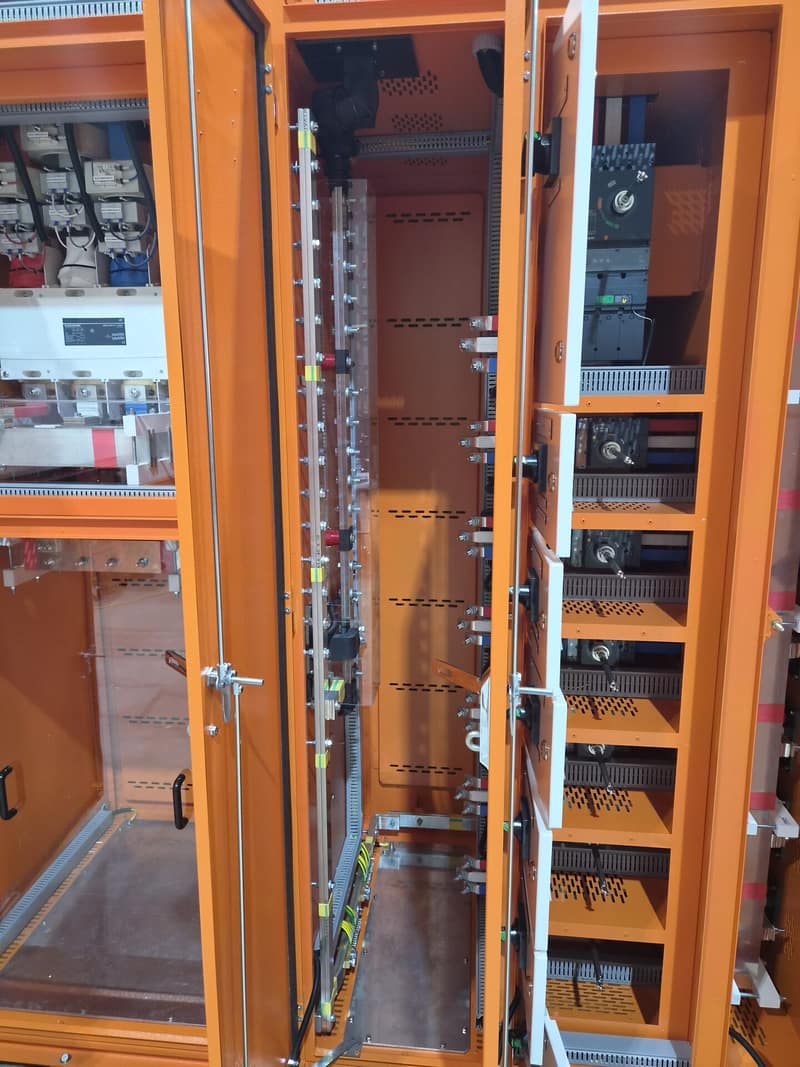

Clapham Station — rising busbar and cable zones

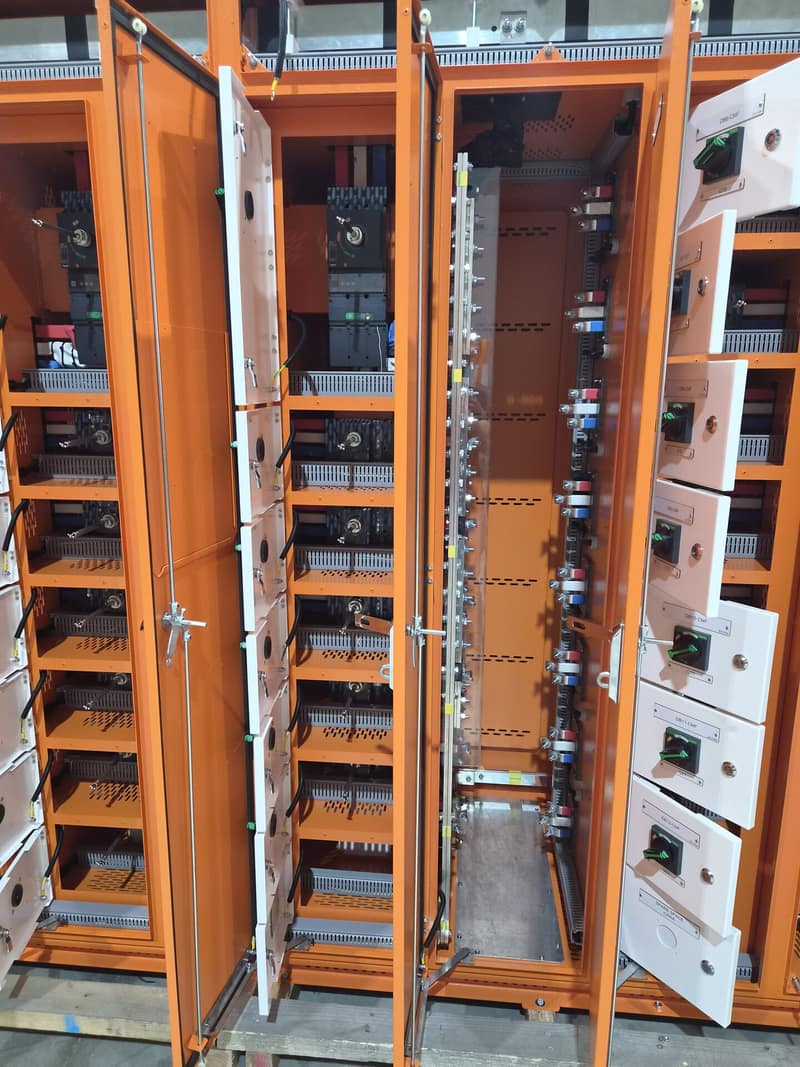

Clapham Station — MCCB sections and distribution chassis

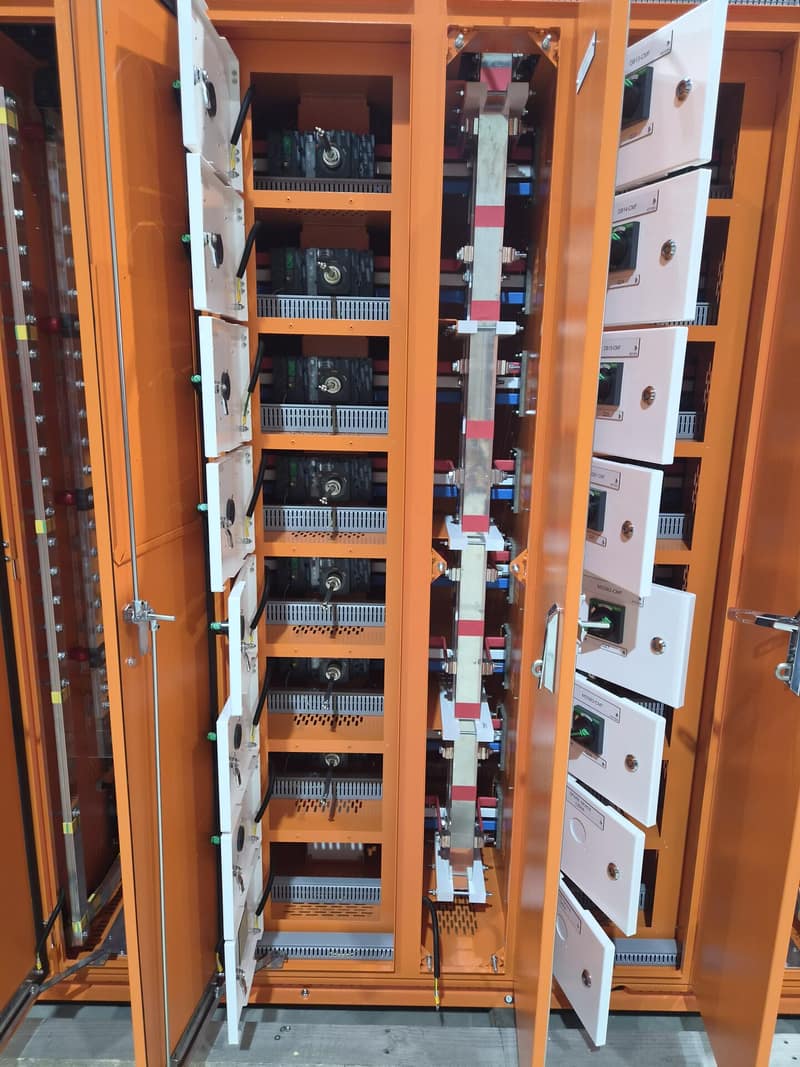

Clapham Station — DB and MSSB distribution columns
